Architecture

The bwVisu stack consists of multiple parts:

• A webfrontend provides a user interface for users to interact with bwVisu. The webfrontend in turn interacts with the bwVisu middleware via a REST API;
• A middleware that reacts to requests from the web frontend and manages bwVisu jobs on a cluster;
• An HPC-like cluster running Slurm where the bwVisu application images are available and can be executed using singularity. bwVisu integrates very well with existing HPC cluster deployments and imposes very few requirements on the cluster.
• The bwVisu application images

The rough architecture therefore looks something like this:

User <-------> Webfrontend <------> Middleware <-----> HPC Cluster
       HTTPS                HTTPS                SSH
                            (REST API)

bwVisu distinguishes three types of nodes in the cluster (more details here):

• Compute nodes where jobs will run
• Command nodes that the bwVisu middleware will use to manage jobs (typically, these are login nodes)
• Gateway nodes that are used to channel the visualization stream to the user; a port forwarding mechanism allows the user to connect to a port on these nodes which will then be forwarded to the compute node of the MPI master rank.

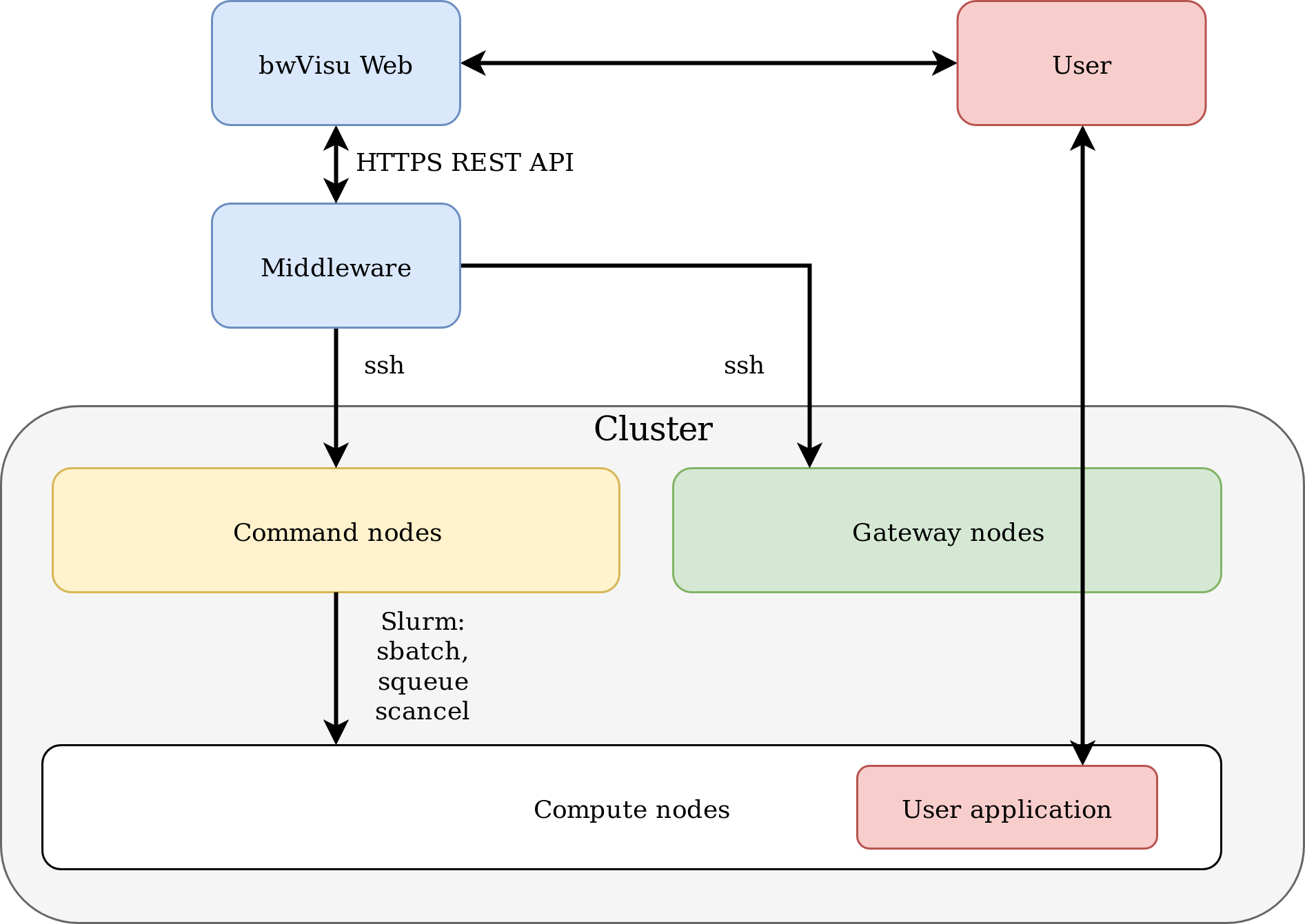

Note that in this setup, the actual connection between user and application for the visualization data does not go through the web frontend. Instead, the web frontend only provides the user with a link which points to the properly forwarded port on one of the gateway nodes. The actual remote visualization software (for most applications we use Xpra) runs as part of the job. This means that the load on the web frontend can be expected to be very light, as the web frontend and middleware merely manage jobs. The following image illustrates the bwVisu architecture in more detail:

Webfrontend

A web-interface and control plane. See here for more information on the bwVisu webfrontend.

Middleware

A custom middleware provides an interface for the web frontend to manage jobs. The middleware, called bwVisu runner is written in python and exposes its features via a flask-based HTTP REST API to the web frontend.

The middleware is designed to be minimally invasive and can be deployed either on nodes of the backend cluster or on an external system. For job management, the middleware communicates via ssh with a set of command nodes, where it starts, stops and monitors jobs with the Slurm commands sbatch, squeue, scancel. If a command node cannot be reached (e.g. because the host is down), the middleware will attempt to use another command node.

Additionally, the middleware uses ssh to access a set of gateway nodes where it establishes iptables forwarding rules of network traffic from ports of the gateway node to the individual compute nodes where the user application runs. This allows the user to connect to his job simply by connecting to a specific network port on one of the gateway nodes. This is necessary because the compute nodes of an HPC cluster are typically not directly available from the internet. Authentication of users connecting to a port is handled by the user application (e.g. Xpra). In order to scale to many concurrent jobs, the middleware automatically distributes the port forwarding assignments (and hence, network load) of the jobs across the available gateway nodes.

The state of jobs is continuously monitored from the gateway nodes. This allows the middleware to provide information to the web frontend whether the job is ready to interact with the user, or whether the user still has to wait before the job can be accessed (e.g., because it is queued and not yet running, or because it is running but still in an initial start-up phase where network connections are not yet accepted).

All state of the middleware is stored in an etcd database, which is a distributed key-value store. Because of the distributed design of etcd, it is easy to operate in a redundant manner and hence allows for a resilient, highly-available deployment of the middleware.

The requirements that the bwVisu middleware imposes on the cluster are designed to be as low as possible: The middleware must be granted ssh access to a dedicated user account, and this account must be able to run Slurm commands on the command nodes and iptables on the gateway nodes (details here). Since the installation of the bwVisu middleware is the only requirement to use a given HPC cluster for bwVisu, extending an existing HPC cluster with bwVisu's remote visualization capabilities is easy and does not necessitate any changes to the existing cluster configuration.

The middleware consists of four parts:

• the actual runner consists of two parts:
  • Flask-based REST API for the communication with the Web frontend
  • Background watcher process that periodically queries the HPC scheduler on the cluster for information on the running jobs. This is used to update the list of running jobs and the state of the jobs.
• the keyhole service that manages port forwarding rules, which also consists of two halves:
  • Flask-based REST API which running jobs can use to request a port forwarding rule
  • Background watcher process that checks if a service has actually started listening on assigned ports. This is done using nc -z from the gateway nodes, and is necessary because after the job has started, it may still take some time for e.g. an Xpra job to be ready to accept user connections. During this time, the job should not yet be advertised as available to the user because the user will not be able to successfully connect. Therefore it is necessary to actually test if the ports accept connections. This mechanism can also be interpreted as a health check for running jobs. The keyhole watcher also makes sure that iptables forwarding rules that belong to expired jobs are removed again.

Jobs are started by substituting variables in batch script templates with values provided by the web frontend and submitting the batch script to Slurm. Also embedded in the batch script is the keyhole client, which will be executed once the batch script runs. It will then request port forwarding from the middleware to its host. The process of launching a job is quite complex; you can find a detailed walkthrough here.

Cluster

The bwVisu backend cluster can in principle be any regular HPC cluster. bwVisu has been designed to be minimally invasive and imposes very few requirements on the cluster. See here for a detailed description on how to tell the middleware how to talk to an existing cluster, and which prerequisites must be met.

Applications

Applications provided by bwVisu are usually containerized Singularity images. There are only few restrictions on the images used in bwVisu. For more information see here.

Deploying bwVisu

Webfrontend

See here for information on how to deploy the bwVisu webfrontend. Development of the bwVisu webfrontend has been concluded and a docker image will be provided.

Middleware

Make sure the backend meets all requirements as described here. See deployment/provision-middleware.py in the middleware software repository to see instructions for an example middleware deployment. Make sure to set the variables in settings.json for your etcd password and middleware authentication secret. Finally, adapt your middleware configuration file to your setup. More information on this configuration file can again be found here.

Applications

Place your images in your image directory. Modify the contents of the templates inside the bwVisu runner (job script templates) with the path to your application images. Make sure that the image containing the modified Xorg (bwvisu_xorg.sif) is inside that directory. Update the content of your app bundles with the new application. More information can be found here.

How to install

You need to prepare the various components of bwVisu:

1. Preparing the backend

Make sure that the backend cluster meets all requirements as described here.

2. Installing the Middleware

You can find instructions on how to configure a virtual machine running the middleware in the middleware (bwvisu-runner) repository in deployment/provision-middleware.py.

3. Installing the Webfrontend

You can find instructions on how to install the web frontend in the readme of the web frontend repository (bwvisu-web) and here.

4. Installing the Applications

See here for further instructions.
